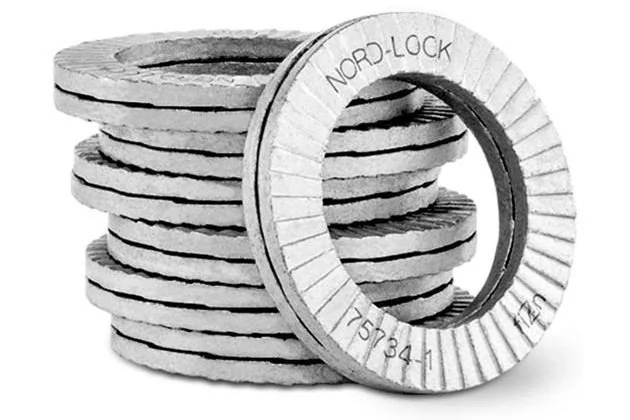

Wedge-Lock Washers
Nord-Lock wedge-locking washers utilize tension instead of friction in order to secure bolted joints exposed to severe vibration and dynamic loads.
Over the operational life cycle, Nord-Lock washers offer increased operational reliability and lower maintenance costs, while significantly reducing the risks of production stops, accidents and warranty claims.
X-Series Washers
The Nord-Lock X-series washers combine Nord-Lock wedge-locking with an innovative spring effect, offering the highest security against spontaneous bolt loosening and slackening.
This product is the optimum choice when you have both vibrations and applications with risk of slackening such as short clamp length, multiple clamped parts, gaskets, soft metals, plastic composites, coatings and thermal cycling.
Nord-Lock X-series steel washer promises the highest corrosion resistance in the market, it is tested at least 1,000 hours in the Neutral Salt Spray Test.
Steel Construction Washers
Nord-Lock steel construction (SC) washers are wedge-locking washers specially designed for use on steel construction applications and to fit HV/HR sets bolts and nuts in accordance to the European standard EN 14399-3
/EN 14399-4 /EN 14399-8.
In order to ensure an optimal contact surface between the bolt and the washer, each SC-washer pair has chamfers on the inner diameter. Since the chamfer is present on both sides of each pair, it eliminates the risk of incorrect installation of the washer.
Nord-Lock steel construction washer promises the highest corrosion resistance in the market, it is tested at least 1,000 hours in the Neutral Salt Spray Test.
Wheel Nuts
The Nord-Lock wheel nut also referred to as lug nut safely secures wheels on both on-road and off-road heavy vehicles, by maintaining high clamping force, even under extreme operating conditions. It is designed for flat-faced steel rims and when assembled correctly, cannot loosen by itself.
Nord-Lock wheel nuts have been rigorously tested and approved by independent institutes as well as certification authorities.

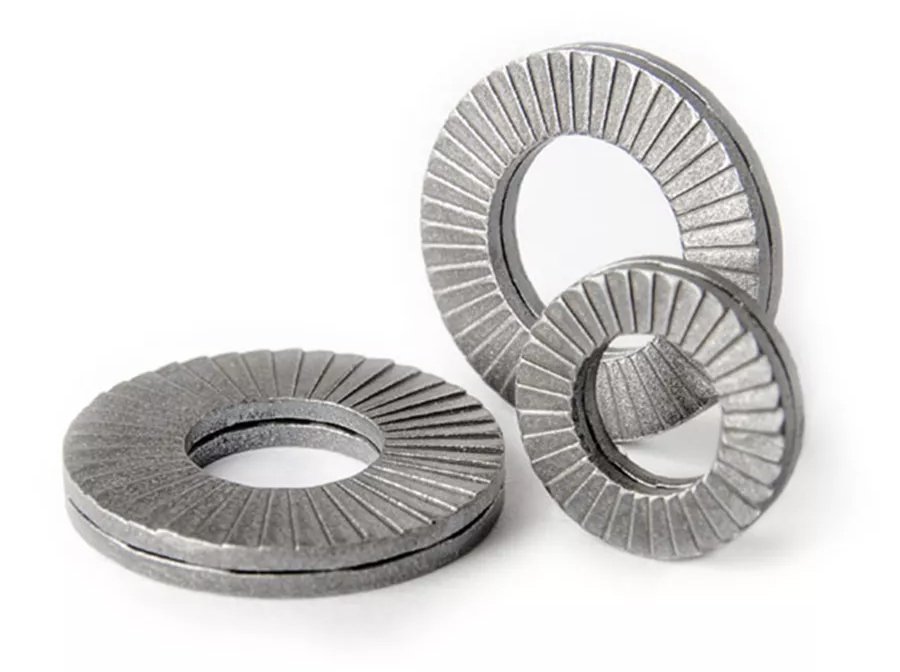

Combi Bolt Washers
Nord-Lock combi bolt washers are specifically designed to be permanently attached to a bolt (SEMS), providing an additional layer of security to applications.
The standard range of Nord-Lock combi bolt washers consists of NL5 - NL12 in steel material. Complete combi bolts, including Nord-Lock combi bolt washers, are offered in co-operation with a local bolt manufacturer.
